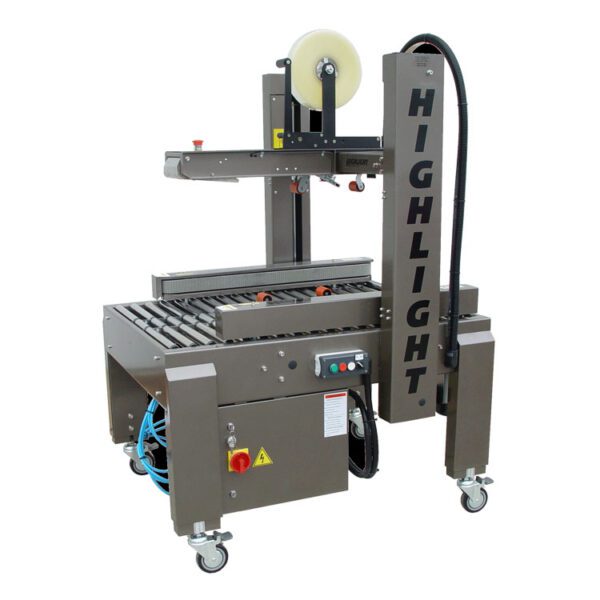

3500 TB-R – Magnum Random Top & Bottom Drive Carton & Case Sealers
- Speed: Up to 15 cases/min
- Model: 3500 TB-R
NON STOCK ITEM - Ships from Grand Rapids, Michigan 49519
The Magnum 3500 TB-R Semi Automatic Random Top and Bottom Drive Carton & Case Sealers are designed for use with cartons that are overstuffed or unstable, and taller in height, and shorter in length because the top and bottom drive belts hold the carton more securely while applying the tape application and automatically adjusting to case sizes.
The 200 series tape head is adjustable and can use any 2" case tape and provides excellent top and bottom case sealing. PLC controls come with two taping programs help to improve reliability and speed.
Features & Benefits of Magnum 3500-TB-R Carton & Case Sealer:
• Random, self adjusting operation.
• Top head automatically adjusts for random cases.
• Auto case centering.
• Top belts and dual mast for tape head are air operated.
• PLC controlled with R1 memory and R2 random settings.
• Speed - up to 15 cases per minute (75 ft./min.)
• Two 2" tape heads allow for easy tape threading.
• Height of legs is adjustable from 27"–35".
• Includes locking casters.
• 2 year limited warranty.
Options of Magnum 3500-TB-R Carton & Case Sealer:
• 3" Tape Head.
• Conversion Kit - 2" tape on 3" head.
• Chrome steel infeed and Exit Conveyors.
• Additional Size Ranges.
Style – Random
Belt Drives – Top and Bottom
Speed – Up to 15 cases per minute (75 ft./min.)
Minimum Capacity (L x W x H) – 5″ x 6″ x 5″
Maximum Capacity (L x W x H) – Unlimited x 20″ x 20″
Tape – 2″
Electric – 120 VAC, 1 Phase, 15 Amp
Air– 4 cfm @ 80 psi
-
3500-TB-R Magnum Random Top & Bottom Drive Carton & Case Sealers Literature
