NON STOCK ITEM - Ships from Santa Fe Springs, CA 90670

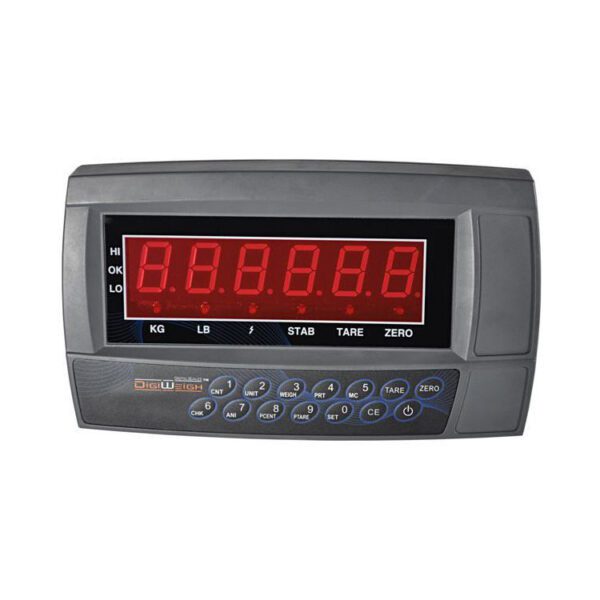

The DWP-102N Digital Weight Indicator is an easy to use, NTEP approved (6000 divisions) that can be used with many styles of industrial scales including bench scales, floor scales, pallet jack scales, forklift scales. and many other types.

It's large, bright LED display, provides great visibility that operates independent of ambient lighting conditions, and can be mounted on either a swivel stand or on the wall.

Features of DWP-102N Digital Weight Indicator:

• It has an internal resolution of 300,000 counts and 50,000 external counts.
• The operating temperature is : -10 - 40C
• It can be connected to a computer with help of an RS-232 port. It can also be integrated in a network, with optional compatible desktop software available.
• The calibration method is software calibration.
• The digital filtering is software selectable.
• Additional symbols include Net, Gross, Stable, Tare, lb, kg, Zero, PCS.
• It has a 14-key flat membrane panel keyboard.
• Power: 9V DC, 500mA Femal & Rechargeable battery.
• e full scale input signal is 30mV which includes the dead load.
• The minimum sensitivity is 1.0uV / grad.
• The input impedance is 30mΩ, typical.
• The display resolution is 50,000 max.
• The measurement rate is 10 Meas / sec.
• The system linearity is within 0.02% of FS.
• Excitation Voltage : +10V DC, 4 x 350Ω load cells.
• Serial Port : Full Duplex, 1200, 2400, 4800, 9600, 19200 Baud.
• The display is 0.56” 7-segment LED display showing 6 digits.

• DWP-102N Digital Weight Indicator Literature
  Download
