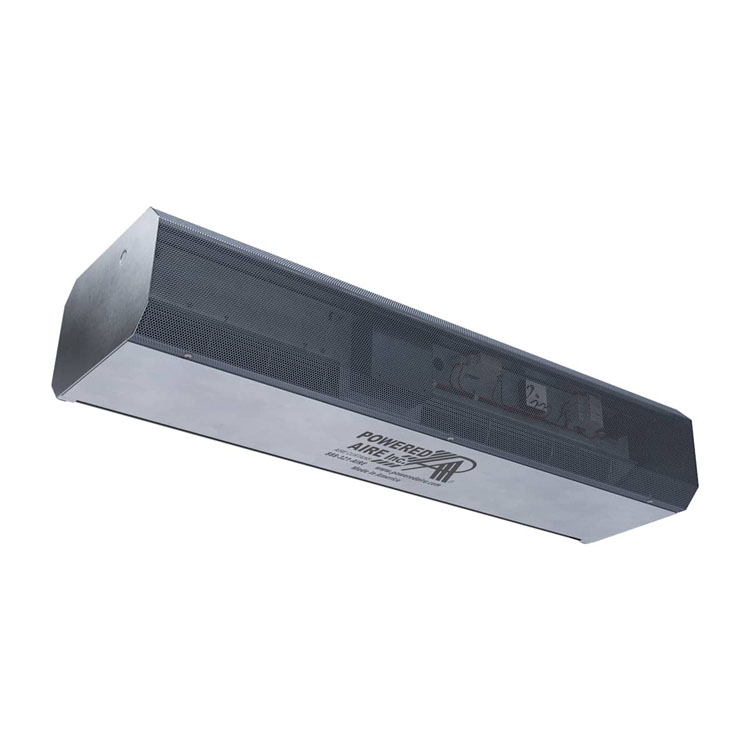

MP – Air Curtain

  • Max Mount Height: 10 ft.
  • Item #: POW04-MP
DACO Corporation is a proud distributor of Powered Aire who is a manufacturer of air doors for controlling environmental elements within facilities. Their air curtains can be range from hot to cold and can ensure your facility stays at your desired temperature without worry.

NON STOCK ITEM - Ships from Greenville, PA 16125

The compact, low profile MP (Mini-Power™) Air Curtain is designed for use over drive-thru windows and over entrances where there is limited space, to provide protection from the cold, heat, dust and insects of everyday life.  By blowing an controlled stream of air down across the door, the air curtain keeps indoor air in and outdoor air out and to help improve customer comfort and satisfaction, employee productivity and maintain sanitation levels.

These commercial industrial doors are designed for maximum mounting heights of up to 10' for environmental  separation and come in (10) sizes from 30" to 10' long.

Construction - Stainless Steel Casing

Recommended Maximum Mounting Height - 10 ft. Environmental Separation

Options Available - Unheated, Electric Heat, Hot Water & Steam Heat

THE POWRED AIRE DIFFERENCE

  • Other air curtains aim the discharge of each blower down, resulting in dead spots wherever there are spaces between the blowers.
  • A MP air curtain aims the air from the blowers towards the back of the air curtain, where it fills a plenum and is then forced out evenly across the length of the air curtain.

MP OPTIONS AVAILABLE:

• Unheated
• Electric, Hot Water and Steam Heated

MP RECOMMENDED OPENINGS:

• Toll Booths
• Zoos / Amusement Parks
• Butterfly Houses
• Restaurants
• Offices
• Any area that the distance between the door header and ceiling is not large enough to place a standard air door.

MP AIR CURTAIN FEATURES:

• Made of 18 gauge 304, corrosion resistant, stainless steel with #3 finish.
• Heavy duty 1/5 hp, double shaft motor.
• Variable speed controller.
• Unheated model available with 120 volt cord to plug into wall.
• Provides uniform velocity across the entire length of the discharge area.
• Aluminum fan with tangential fan wheel(s) and flexible hubs.
• Perforated raised stainless steel black powder coated inlet screen.
• Discharge nozzle with adjustable aluminum steering vane(s).
• ETL Listed.
• Made in the USA.

Construction – Stainless Steel Casing

Recommended Maximum Mounting Height – 10 ft. Environmental Separation

Options Available – Unheated, Electric Heat, Hot Water & Steam Heat

  • Powered Aire Industrial Air Curtain Industrial Brochure
