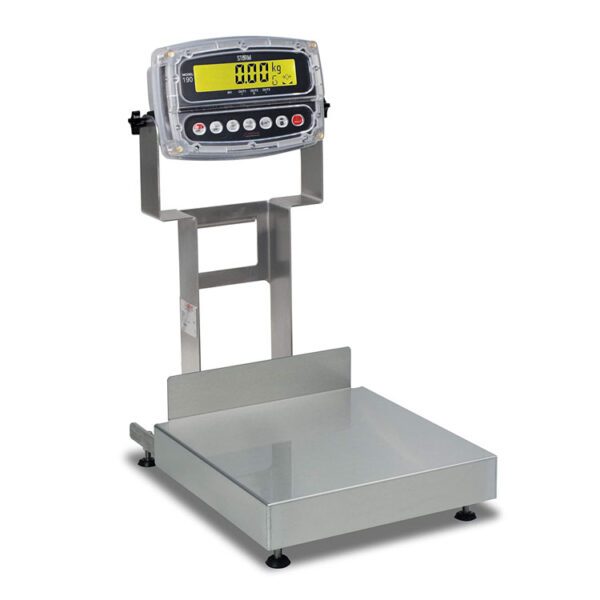

CA12-120W-190 – Industrial Checkweighing Scale
- Dimensions: 12.68 × 12.69 × 2.39 in
- Capacity: 120 lbs.
- Applications: Wet
- Model: CA12-120W-190
DACO Corporation is a proud distributor of Cardinal Scales who manufactures industrial scales for multiple applications. These durable scales range from platform scales to axle scales that can be used in food processing, hospitals, construction, and many more industries.
NON STOCK ITEM – Ships from Webb City, MO 64870
- Applications – High pressure, high temperature spray downs
- Platform Dimensions (L x W x H) – 12.68″ x 12.69″ x 2.39″
- Capacity – 120 lbs. x 0.05 lbs.
- Tare Weight – 40 lb.
- Indicator Construction: IP69K-rated polycarbonate and ABS enclosure (190 STORM model)
- Scale Base and Column Construction: Stainless steel with IP69K-rated load cell
- Operating Temperature: 14 to 104 ºF (-10 to +40 ºC)
- Display: Six digit, seven segment, 1 in / 25 mm high backlit LCD
- Excitation: 5.18 VDC
- Signal Input Range: 0.5 mV min. to 40 mV max. (with dead load boost)
- Tare Capacity: Scale Capacity
- Sample Rate: 1 to 100 samples per second, selectable
- Keypad: Color coded capacitive touch type, 7 keys
- Standard I/O: 1 bi-directional RS232
- Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max.
- Optional Battery Type (model BP190): Lithium-Ion Rechargeable
- Load Cell: Model SSPW-20KG stainless steel IP69K-rated
- Protection Rating: IP69K rated
-
CA-190 Checkweighing Bench Scales Literature
