NON STOCK ITEM - Ships from Dixon, IL 61021

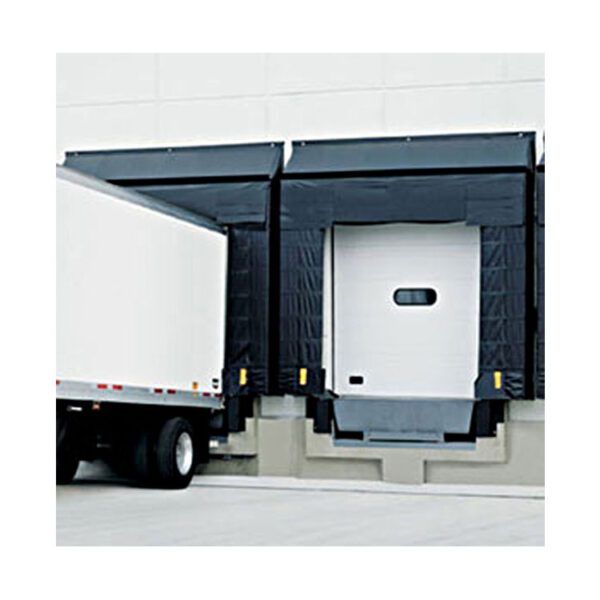

ThermaSeal™ TM200 Sectional Overhead Doors are 2" thick and have a 3 layer construction - two layers of high strength galvanized steel with a layer of polyurethane insulation between them - providing a 18.3 R value.

Maximum Door Size is 36' wide x 22' high.

They are available in white only.

Features of ThermaSeal™ TM200 - Sectional Overhead Door:

• Constructed of 2" thick 3 layer door sections made from 2 outside layers of high-strength, impact-resistant steel with a thermal core layer of polyurethane in between.
• Exterior Steel Thickness 26 gauge / Interior Steel Thickness 26 gauge.
• End Stile Steel Thickness 16 gauge.
• Insulated R-value of 18.3.
• Manual, motor or hand chain operation.
• Thermal break, bottom seal (3" or 4" EPDM, or 3" yellow).  Optional header seal.
• Hot-dipped galvanized steel track.
• Section Warranty - 1 year for rust, 10 years for delamination of insulation.
• Hardware Warranty - 1 year.
• Spring Warranty - 1 year or cycle life.

Maximum Door Size – 36′ W x 22′ H

Operation – Manual, Motor or Hand Chain

Construction

• 2 exterior layers of 26 gauge steel.
• 2 interior layers of 26 gauge steel.
• 1 internal layer of expanded polyurethane insulation (18.3 R-value).
• Stucco exterior surface texture.
• Section joint is ship lap.

Trussing Wind load – 20 PSF.

Windows

• Select 24″ x 8″, 24″ x 12″ rigid frame or full-view window in 34″ x 16″.
• Choose from clear insulated glass and clear insulated tempered.
