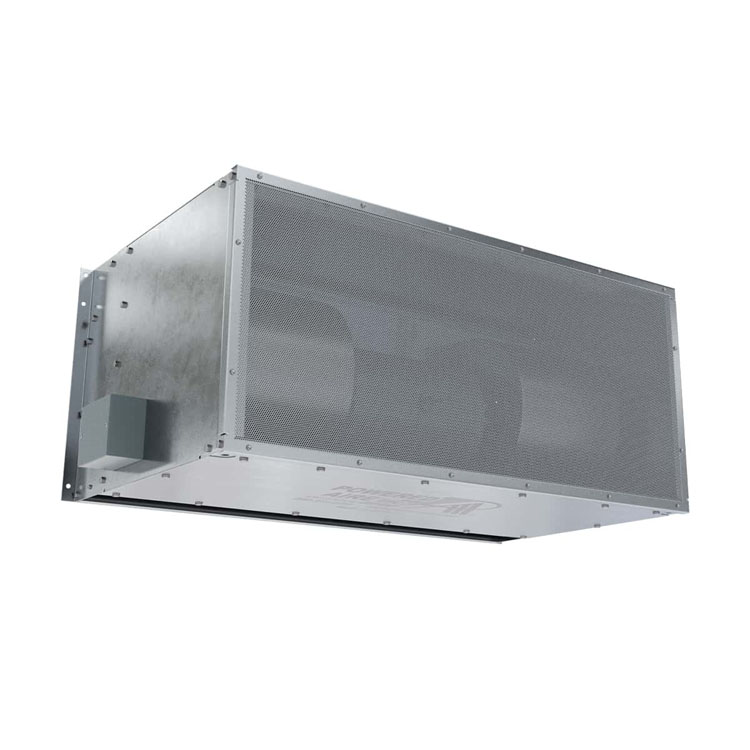

BPA – Air Curtain
- Max Mount Height: 30 ft.
- Item #: POW04-BPA
NON STOCK ITEM - Ships from Greenville, PA 16125
The BPA Air Curtain is designed for extra large openings in industrial environments, where you need maximum air capacity to provide protection from the cold, heat, dust and insects of everyday life. By blowing an controlled stream of air down across the door, the air curtain keeps indoor air in and outdoor air out, helping to improve customer comfort, employee productivity and maintain sanitation levels.
These commercial industrial doors are designed for maximum mounting heights of up to 30" for environmental separation and come in (15) sizes from 60" to 20" long.
Construction - Stainless Steel Casing
Recommended Maximum Mounting Height - 30 ft. Environmental Separation
Options Available - Unheated, Electric Heat, Hot Water & Steam Heat, Direct and Indirect Gas Heat
THE POWERED AIRE DIFFERENCE
- Other air curtains aim the discharge of each blower down, resulting in dead spots wherever there are spaces between the blowers.
- A BPA air curtain aims the air from the blowers towards the back of the air curtain, where it fills a plenum and is then forced out evenly across the length of the air curtain.
BPA OPTIONS AVAILABLE:
- Unheated
- Electric, Steam, Hot Water, Direct Gas and Indirect Gas Heat
BPA RECOMMENDED OPENINGS:
- Extra Large Openings
- Industrial Environments
BPA AIR CURTAIN FEATURES:
- Made of 16 gauge stainless steel.
- Heavy duty 7.5 hp, Total Enclosed Air Over (TEAO), 1160 rpm, direct drive motor for longer life.
- Provides uniform velocity across the entire length of the discharge area.
- Access panels for inspection, cleaning and removal of motor blower assembly.
- Galvanized centrifugal fan, double inlet design with brazed hubs.
- Protective perforated stainless steel inlet screen.
- Adjustable discharge nozzle.
- Wall or top mount.
- Made in the USA.
Construction – Stainless Steel Casing
Recommended Maximum Mounting Height – 30 ft. Environmental Separation
Options Available – Unheated, Electric Heat, Hot Water & Steam Heat, Direct and Indirect Gas Heat
-
Powered Aire Industrial Air Curtain Industrial Brochure
