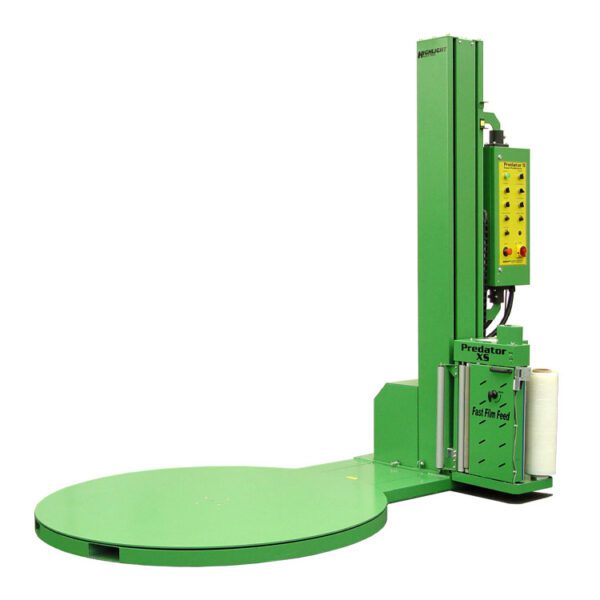

Predator XS – Semi Automatic Stretch Wrap Machine with Select Stretch

  • Wrap Height: 80"
  • Speed: 25-30 loads/hour
  • Model: HIG04-PREDATORXS
DACO Corporation is a proud distributor of Highlight Industries who is a manufacturer of packaging equipment including stretch wrappers and case sealers.

NON STOCK ITEM - Ships from Grand Rapids, Michigan 49519

The Predator XS Semi Automatic Stretch Pallet Wrapper with select stretch, allows you to quickly choose between pre-stretch gear ratios of either 250% or 200%. Stretch wrap film is manually attached at the beginning and cut automatically at the end of the wrap cycle.

The Predator XS is ideal for those wanting a few more bells and whistles without having to jump straight to an automatic system.

Features of Predator SS Stretch Pallet Wrappers:

  • Low Profile Model.
  • Semi-Automatic with Select Pre-Stretch Gears.
  • Standard wrap height of 80" with 65" diameter turntable.
  • Speed is 25-30 loads per hour.
  • Load capacity of 4,000 lbs.
  • Accepts film width of 20".
  • Film saving power pre-stretch.
  • Easy to use control panel that swivels 360 degrees for full viewing from any angle.
  • Side mounted carriage for fast film feed.
  • Advanced film delivery adjusts to the load size automatically and applying even film force.
  • Automatic film cut after wrap cycle.
  • AC Drives and motors.
  • A/B Micrologix PLC.
  • 2 adjustable wrapping modes - spiral up and down , or spiral up only.
  • 3 year warranty.

Available Options Include:

  • 30" Film Width.
  • Top Platen.
  • Scale.
  • Ramp.
  • 110" Wrap Height.
  • 5,000 lb. capacity.
  • High Profile Turntable (reduces wrap height 10").
  • Gravity TT Conveyor w/brake.

Select Pre-Stretch Gears – Choose 200% or 250% pre-stretch

Turntable Speed – Adjustable to 12 rpm / 25-30 loads per hour

Minimum Load Size (L x W x H) – 30″ x 30″ x 30″

Maximum Load Size (L x W x H) – 52″ x 52″ x 80″

Wrap Height – up to 80″

Drives & Motors – AC

Load Weight Capacity – 4,000 lbs.

Required Utilities
  Electric – 120 VAC, 1 Phase, 15
  Amp  Air – None Required

Wrap Modes – (2), Spiral Up/Down & Spiral Up Only

Machine Weight – 1,350 lbs.

  • Predator XS Stretch Pallet Wrappers Literature
