RBT – Air Curtain
- Max Mount Height: 7 ft.
- Item #: POW01-RBT
DACO Corporation is a proud distributor of Powered Aire who is a manufacturer of air doors for controlling environmental elements within facilities. Their air curtains can be range from hot to cold and can ensure your facility stays at your desired temperature without worry.
NON STOCK ITEM - Ships from Greenville, PA 16125

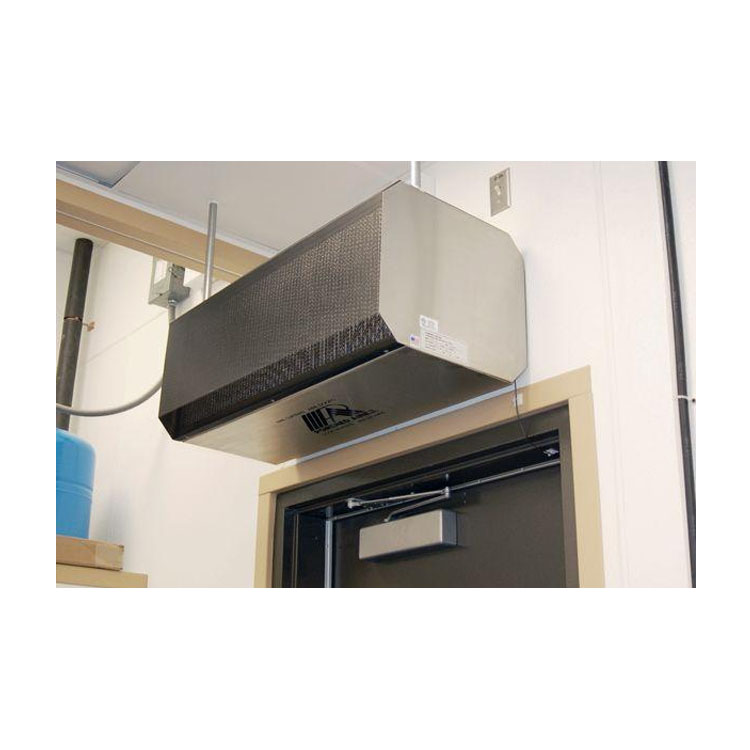

The RBT (Restaurant Bug Tested) Air Curtain is designed to satisfy local health codes and are ETL Sanitation Listed for Standard NSF 37 to provide protection from the dust, debris and insects of everyday life. By blowing an controlled stream of air down across the door, the air curtain keeps indoor air in and outdoor air out and to help improve customer comfort and satisfaction, employee productivity and maintain sanitation levels.
These commercial industrial doors are designed for maximum mounting heights of up to 7" for insect protection and come in (12) sizes from 36" to 12" long.
Construction - Stainless Steel Casing
Recommended Maximum Mounting Height - 7 ft. Environmental Separation
Options Available - Unheated
THE POWERED AIRE DIFFERENCE
- Other air curtains aim the discharge of each blower down, resulting in dead spots wherever there are spaces between the blowers.
- A RBT air curtain aims the air from the blowers towards the back of the air curtain, where it fills a plenum and is then forced out evenly across the length of the air curtain.
RBT OPTIONS AVAILABLE:
- Unheated
RBT RECOMMENDED OPENINGS:
- Restaurants
- Cafeterias
- Food Service Facilities
RBT AIR CURTAIN FEATURES:
- Made of 18 gauge 304, corrosion resistant, stainless steel with #3 finish.
- Heavy duty 3/4 hp, 1610 rpm, single phase motor.
- Provides uniform velocity across the entire length of the discharge area.
- Galvanized centrifugal fan, double inlet design with zinc plated hubs.
- Perforated raised stainless steel black powder coated inlet screen.
- Discharge nozzle designed so that air leaves on a 6 degree plane.
- Directional air foil vane.
- Optional 1/2" recleanable filter.
- ETL Sanitation listed per NSF-37 standard.
- ETL listed for indoor and outdoor use.
- USDA, FDA and AIB compliant.
- 24 month parts warranty.
- Made in the USA.
Construction – Stainless Steel Casing
Recommended Maximum Mounting Height – 7 ft. Environmental Separation
Options Available – Unheated
-
Powered Aire Industrial Air Curtain Industrial Brochure
