NON STOCK - Ships from Philadelphia, PA  19182

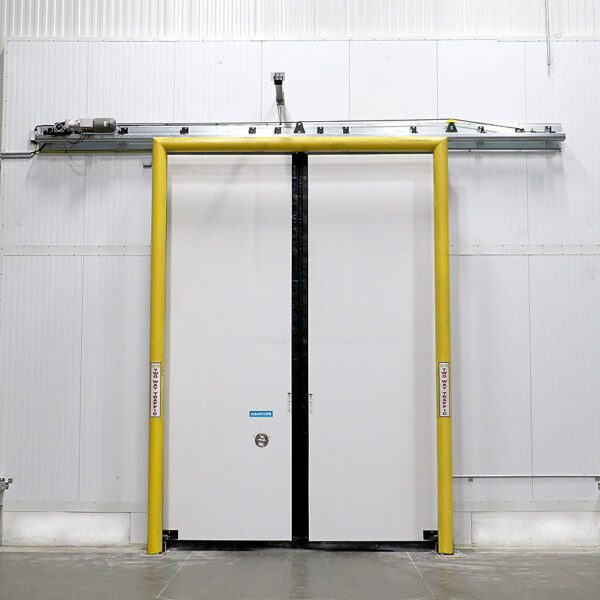

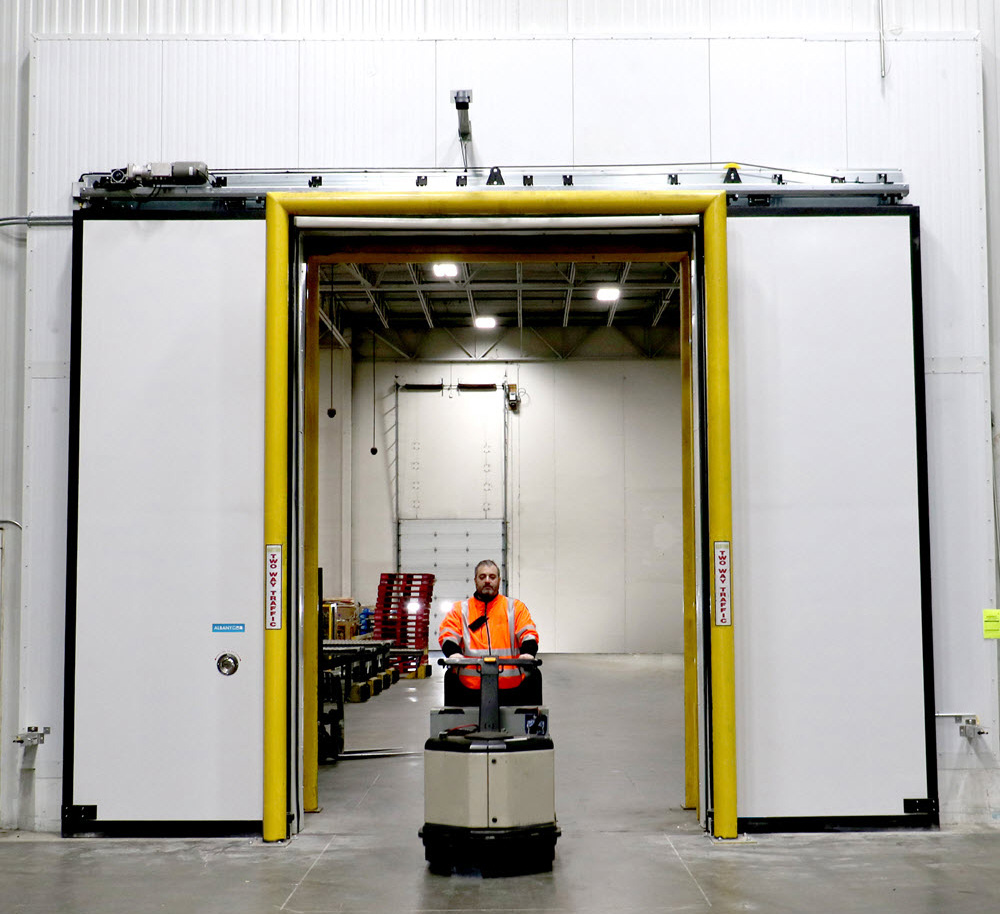

RS2400 Freezer High Speed Bi-Parting Doors with compressible closed-cell EVA foam and highly durable panels, withstands the daily demands of a cold storage facility. Its damage-resistant panels and self-regulating heat around three sides of the opening ensure excellent temperature control and enhance material handling efficiency while minimizing maintenance.

Door Specifications

• Door Dimensions - Up to 16' x 24' (Bi-Parting)
• Speed - up to 125” per second** (Bi-Part) (speed varies with door size)
• Temperature Range - below -20° F

Features for RS2400 Freezer High Speed Bi-Parting Doors include:

• Opening Speed Up To 125” Per Second.
• 4” Panel Thickness – R17, with a Compressible Close Cell EVA Foam Core.
• White Thermoplastic Flexible Panel Outer Shells.
• Polyurethane Elastomer Perimeter Panel Edges.
• Full Perimeter Adjustable Gasket Seals.
• Heavy-Duty Galvanized “Down and In” Track System.
• Manual Panel Release Capability.
• NEMA 4X Panel with Self Diagnostic Controller with HMI Display and E-Stop Button Included.
• Manual Panel Release Capability.
• Standard Open/Close/Stop through HMI Time Delay Closing.
• (2) Sets Of Through Beam Reversing Photo-Eyes.
• Five-Year/One Million Cycle Limited Warranty on Mechanical Components And Door Controller.
• Five-Year/Unlimited Cycle Warranty on EVA Foam Panels.

Benefits for RS2400 Freezer High Speed Bi-Parting Doors include:

• Energy Efficient - Rapid Slide features flexible panel technology with insulation values up to R41. This high level of insulation, combined with energy-efficient integrated heating systems, enables the Rapid Slide door series to achieve the lowest operational electric costs.
• High Speed- with door opening speeds reaching up to 125 inches per second, this Rapid Slide series sets a new standard for productivity. Offering full access in less than one second, the Rapid Slide series delivers unparalleled energy cost savings, making it the most efficient door available.
• Superior Sealing - unlike fabric doors, the Rapid Slide offers unmatched high compression full perimeter sealing. Featuring a standard "up and out" track system, the door panels are released from the gaskets as the door slides open.
• Strength & Durability - flexible thermoplastic outer shells and polyurethane edge seals create a seamless panel. The compressible EVA foam ensures superior impact resistance and exceptional damage protection.
• Reduced Maintenance Costs - the Rapid Slide series is designed for high-cycle, high-speed continuous operation. With seamless track systems, polyurethane rollers, and impact-capable panels, these doors ensure low maintenance requirements for your facility.

• RS2400 Freezer High Speed Bi-Parting Doors Literature
