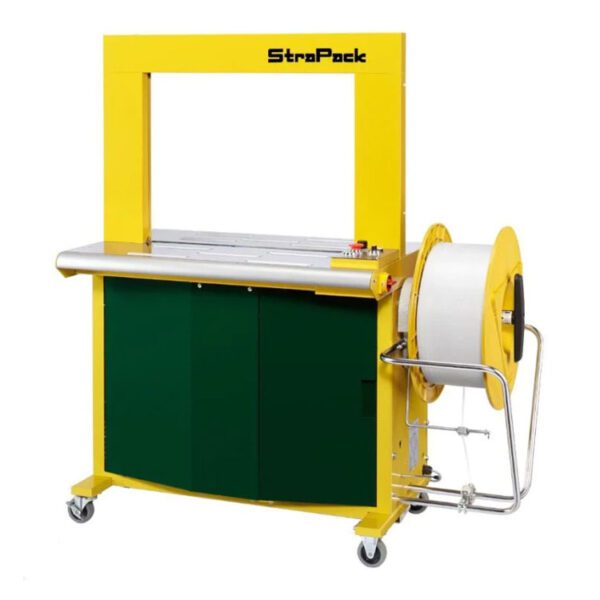

SQ-800 – Arch Strapping Machine

  • Speed: Up to 55 straps/min
  • Model: STR14-SQ-800
DACO Corporation is a proud distributor of Strapack who s a manufacturer of packaging equipment such as banding machines, automatic strapping machines, polypropelyne strapping and more.

NON-STOCK ITEM - Ships from Union City, CA 94587

The SQ-800 Arch Plastic Strapping Machine is an affordable, easy to use, semi-automatic tabletop strapping machine.

This strapping machine features a brushless motor that reduces dust build-up and digitally controlled tension dial.  The DC motor eliminates the need for a clutch, brake, v-belt, FR roller, driven mirco-v belt and back tension.  Because of less moving parts, maintenance costs are lower and its life span is longer.

SQ-800 Arch Plastic Strapping Machine Features & Benefits:

• Semi-Automatic operation with bottom seal.
• Brushless DC motor, which at standard speed, only allows the rollers to run during feeding and reversing, reducing dust build-up.
• Less moving parts, and self lubricating design, means less maintenance cost.
• 55 straps per minute, strapper is ready to operate in less than 25 seconds.
• Easy strap loading.
• Automatic re-feed.
• Anti-jam function.
• Digitally controlled tension dial.
• Standby mode helps reduce noise and lessen noise pollution within facility.

Machine Size – 49 3/8” L x 24″ W x 55 1/4″ to 59 3/8” H (Table height 31 1/4″ to 35 3/8″)

Tare Weight – 322 lbs.

Seal – Bottom

Power – 100, 120, 220, 230, 240V, Single Phase 50/60Hz, 0.74kVA

Tensioning – Digital

Package Size

    Maximum – 24 1/2″ W x 18 7/8″ H

    Minimum – 3 1/8″ W x 1 1/8″ H

Strapping Type – Polypropylene

Strap Width – 1/4″, 3/8″ & 1/2″

Strap Thickness – .019″ to .038″

Strap Tension – 176 lb

Strapping Speed – 55 straps / minute

  • SQ-800 Arch Strapping Machine Literature
