NON STOCK ITEM - Ships from Dixon, IL 61021

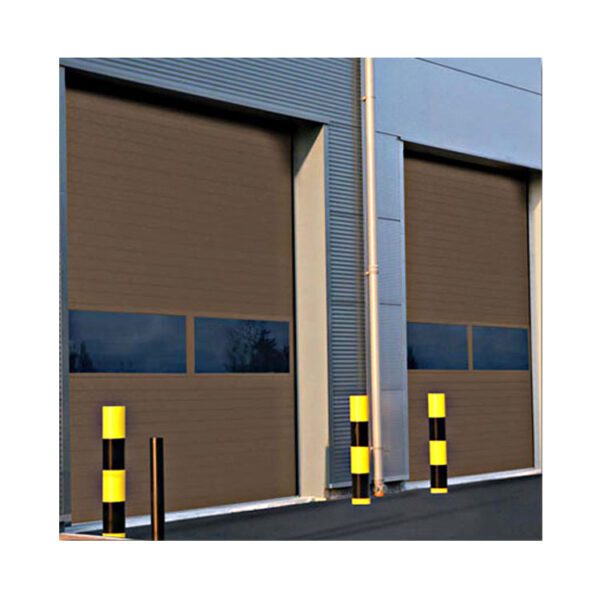

TriCore TC200 Sectional Overhead Doors are 2" thick and have a 3 layer construction - two layers of high strength galvanized steel with a layer of laminated core of CFC free expanded layer of polystyrene insulation between them - providing a 10.25 R value.

Maximum door size is 18' 2" wide x 14' high.

Windows are 24" x 8" oval with 1/8" DSB insulated glass. Two-piece frame rectangular windows are also available.

These commercial sectional overhead roll up doors are available in white, almond, claytone, bronzetone, frost white (Kynar®), beige (Kynar®), brown (Kynar®), sepia (Kynar®), or optional ArmorBrite™ Powder-Coat 187 custom colors.

Features of TC200 Sectional Overhead Door:

• Constructed of 2" thick 3 layer door sections made from 2 outside layers of high-strength, impact-resistant steel with a thermal core layer of polystyrene in between.
• Insulated R-value of 10.25.
• Vinyl thermal break between interior and exterior skins, section joint seal and bottom weather seal helps to prevent weather infiltration.
• Heavy-duty, hot-dipped galvanized steel sections with an epoxy primer and baked-on polyester finish to resist rust and impact.
• Hot-dipped galvanized steel track and steel wheel, ball-bearing rollers help to ensure durable and long standing performance.
• Section Warranty - 1 year for rust, 10 years for delamination and 20 years for insulation.
• Hardware Warranty - 1 year.

Maximum Door Size – 18′ 2″ W x 14′ H

Operation – Manual, Motor or Hand Chain

Construction –

• 2 exterior layers of 26 gauge steel.
• 1 internal layer of expanded polystyrene insulation (10.25 R-value).
• Stucco exterior surface texture.
• – Section joint is tongue-groove.

Trussing Windload

•  12 PSF

Windows – 24″ x 8″ Oval, Square or Rectangle Glass (1/8″ insulated DSB)
