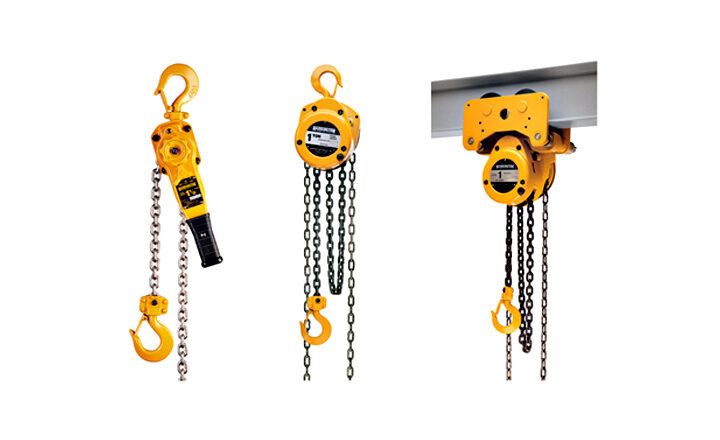

The LB Series of Lever Chain Hoists are easy to operate, offering low headroom and a compact design that is perfect for use in tight quarters. They have the strength to get the job done in real world demands and can be used horizontally, vertically, inverted or at any other load angle.

These chain hoists are ideal for use in heavy-duty construction work, mining, manufacturing, shipbuilding and day-to-day maintenance and repair.

Features & Benefits:

• Available in 3⁄4, 1, 11⁄2, 2, 2 3⁄4, 3, 6, and 9 Ton capacities.
• All-steel, rugged construction, but weighs less that comparable aluminum constructed models.
• Weston-style load brake system, including two moisture-resistant brake pads with four braking surfaces, provides positive braking action. Two brake pawls allow for additional reliability.
• Completely enclosed brake mechanism protects against dirt and moisture.
• Machined, heat-treated, split load double reduction gears provide long life.
• Short steel handle and 15-degree recovery strokes allow for easy operation in close quarters.
• Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load.
• Comes standard with rubber grip for safe, non-slip operation.

These construction grade CF Series Hand Chain Hoists are an economical, but long lasting hoist, built with portability and durability in mind. Their design uses fewer parts, thus providing efficient, low maintenance, trouble-free service.

Features & Benefits:

• Capacities ranging from ½ ton to 5 ton.
• Durable die-cast aluminum body.
• Heat-treated main pinion shaft and load gear provides high strength.
• Smooth running, pre-lubricated ball bearings, and precision machined drive train components require minimal manual effort.
• Weston-style load brake incorporates two moisture-resistant brake pads with four braking surfaces to provide positive braking action.
• Easy to work design and fewer parts results in lower maintenance.

The NTH Series Trolley Chain Hoist is a low headroom hoist that is an ideal solution where space is limited and your application requires a low headroom hoist and trolley combination. They combine the economical CF hand chain hoist with a unique permanently attached trolley, to give you a durable and trouble free solution ideal for tight quarters.

Features & Benefits:

• Low headroom profile allows you to lift load in tight quarters.
• Features the features and benefits of CF series hand chain hoists.
• Cast-iron flanged wheels equipped with sealed, lubed-for-life ball bearings allows trolley to move smoothly.
• Trolleys can be easily adjusted to fit a wide range of beam flange widths.
