NON STOCK ITEM - FOB FACTORY

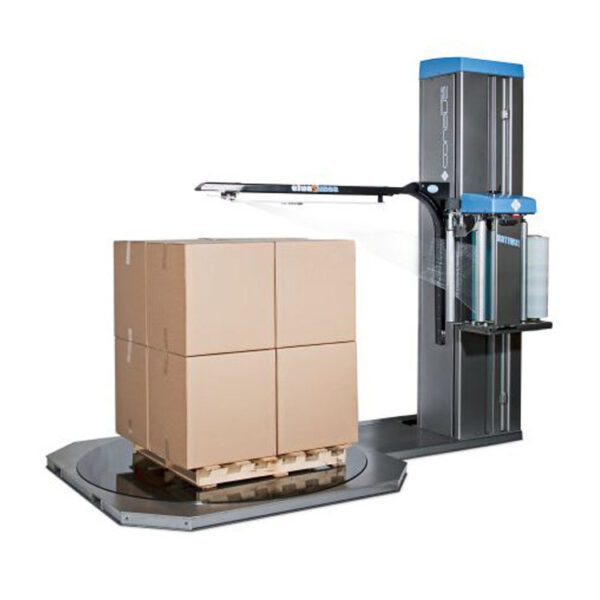

The SWITCH A-ARM Automatic Pallet Wrapper, is a low profile, fully automatic wrapper that can be operated from the forklift with the aid of a wireless remote, eliminating the need for the operator to get off and on the forklift in order to attach and cut the film.  This provides a huge savings in labor costs, in addition to reducing safety concerns.

This pallet wrapper is escentially 3 machines in one, as you can easily select between Automatic, Sem-Automatic and Top Banding modes.  The easy to use control panel allows you to program the wrapper as needed.

It is designed to wrap from 1-40 loads per hour.

High profile model is also available.

Features of SWITCH A-ARM Automatic Pallet Wrapper:

• Maximum load weight: 4,500 lbs dynamic – 10,000 lbs static.
• Maximum load size to safely clear the tower: 67″ W x 67″ L (96″ load diagonal).
• Maximum load size to remain inboard of the turntable: 46″ W x 46″ L (65″ load diagonal).
• Maximum load height: 80″ H (plus up to 4″ top overlap).

Features of Low Profile Turntable:

• 65″ Diameter steel plate with surround deck protection.
• Turntable height is 2.75″ from floor.
• Rotational Speed is 3-12 RPM, c/w soft start acceleration.
• 1/2 HP motor with AC variable speed drive.
• Easy to use control panel.
• Film savings achieved by Accu-Count exact turntable positioning system.
• Rugged surround deck for added protection, 3 sided loading and pit mounting.
• Front & back forklift ports for easy movement.
• Heavy duty surround deck.
• Front & rear forklift tubes.
• Maintenance free 48 support wheels.

Features of Controls:

• 3 Machines in 1 - allows for easy selection of Automatic / Semi-Automatic / Top Banding Modes.
• LCD Opeator Interface with dianostics.
• Cycle Pause & Reinforce Wrap.
• Separate Up and Down Spiral Speed Ccntrols.
• 3 Separate Wrap Programs.
• Emergency Stop Button.
• Wireless Remote Cycle Start & Stop.
• 3 Year Warranty on components.

Features of Film Carriage:

• Super Rapid Thread II™ 20" capacity pre-stretch film carriage.
• Safety Door with auto power cut-off swtich.
• Special Film Threading Device.
• 1/2 HP AC variable speed motor.
• 33% to 313% fixed stretch capacity.
• Carriage Descent Safety Shut-Off Device.
• Superior Film-To-Roller Contact Area.
• Lifetime Warranty on pre-stretch rollers.

Features of Tower Design:

• Heavy Duty Formed / Structural Steel.
• Fully enclosed & guarded motors.
• No exposed cables.
• 5 Year Warranty on steel fabrications.

Features Low Profile Turntable:

• 65" diameter.
• 4,500 lb. capacity.
• 1 to 12 RPM with soft start acceleration.
• 1/2 HP AC variable speed drive.
• Heavy duty surround deck.
• Front & rear forklift tubes.
• Maintenance free 48 support wheels.

Turntable Speed – Adjustable up to 12 rpm / 1-40 loads per hour

Maximum Load Size (L x W x H) – 64″ x 64″ x 75″

Wrap Height – up to 90″ diagonal

Load Weight Capacity – 4,500 lbs.

Required Utilities-
  Electric – 115V / 60HZ / 1Phase / 15 Amps

Wrap Modes – (3), Automatic, Semi-Automatic, Top Banding

• SWITCH A-ARM Automatic Pallet Wrapper Literature
  Download
