IN STOCK ITEM - Ships from Kent, WA 98031

The XT-4502 WH Pre-Stretch Pallet Wrapper is a solid, dependable pallet wrapper at an affordable price point.  Features include an easy to program control panel, soft start, stop and precise phase stopping at cycle end, and a pre-stretch carriage with 250% pre-stretch.  It has a mast height of 100".

An optional Digital Scale Package is available.  It features 1” tall numbers for readout, and RS-232 port for printing.

It is designed to wrap from 20-25 loads per hour.

Features of XT-4505 WORKHORSE™ Pre-Stretch Stretch Wrappers:

• 110" mast height.
• Easy to use control panel.
• Mechanical brake film stretch.
• Precise phase stopping at cycle end.
• Front and rear fork life pick up points.
• Soft start and stop.
• Folding mast column for easy installation and shipment.
• 1 year parts warranty.
• Optional entry / exit ramp.

Optional Digital Scale (sold separately):

• 5,000 lb capacity.
• 4 stainless steel heavy duty load cells.
• 2 load cells are hidden under turntable for safety.
• Pounds and kilograms capable.
• Plus or minus 2 lbs for tolerance and accuracy.
• 3/4” steel plate is used for holding load cells, and for longevity.
• Digital Display, with 1” tall numbers for readout, and RS-232 port for printing.
• Flexible cord for Display at 15 feet cord length for mounting options.

FM Spool Film Carriage:

• Features mechanical brake.
• Manually adjustable mechanical friction.
• On return roller is manually adjustable from carriage.

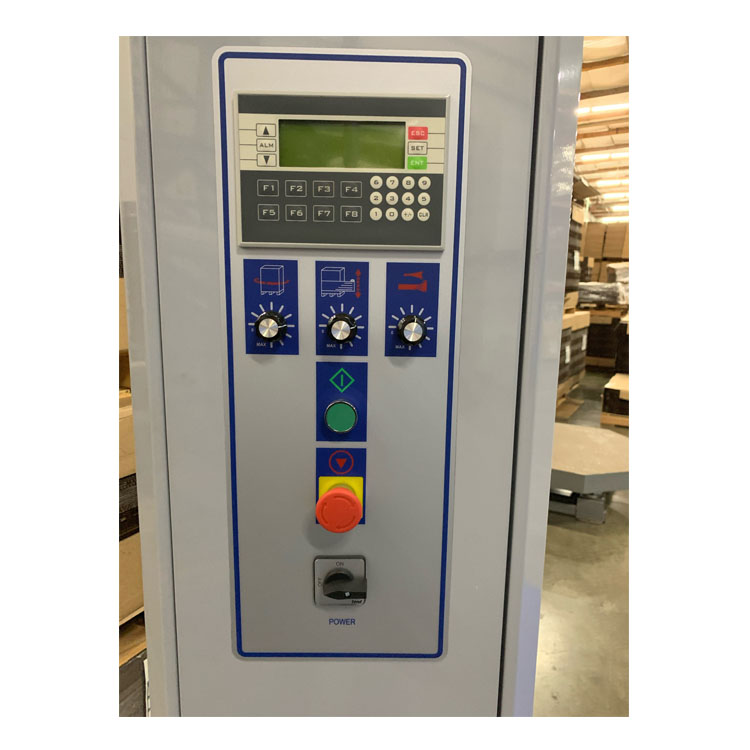

Easy to Program Control Panel  Adjustable Parameters:

• Top and Bottom pallet wrapping rounds from 0-10.
• Rotation speed from 3 to 12 rpm.
• Spool carriage speed.
• Photocell sensing for load height.
• Top sheet cycle.

Selectable Cycles:

• Double cycle (upward and downward).
• Single cycle (only upward or only downward).
• Wrapping cycle with fixed point reinforcement.
• Wrapping cycle with manual control and override.

Mast Height – 100″

Turntable Speed – Adjustable up to 12 rpm / 20-25 loads per hour

Maximum Load Size (L x W x H) – 52″ x 52″ x 100″

Wrap Height – up to 100″

Load Weight Capacity – 5,000 lbs.

Required Utilities–

  Electric – 110V / 60HZ / 1

  Phase  Air – None Required

Wrap Modes – (2), Spiral Up/Down & Spiral Up or Spiral Down Only

Machine Weight – 890 lbs.
